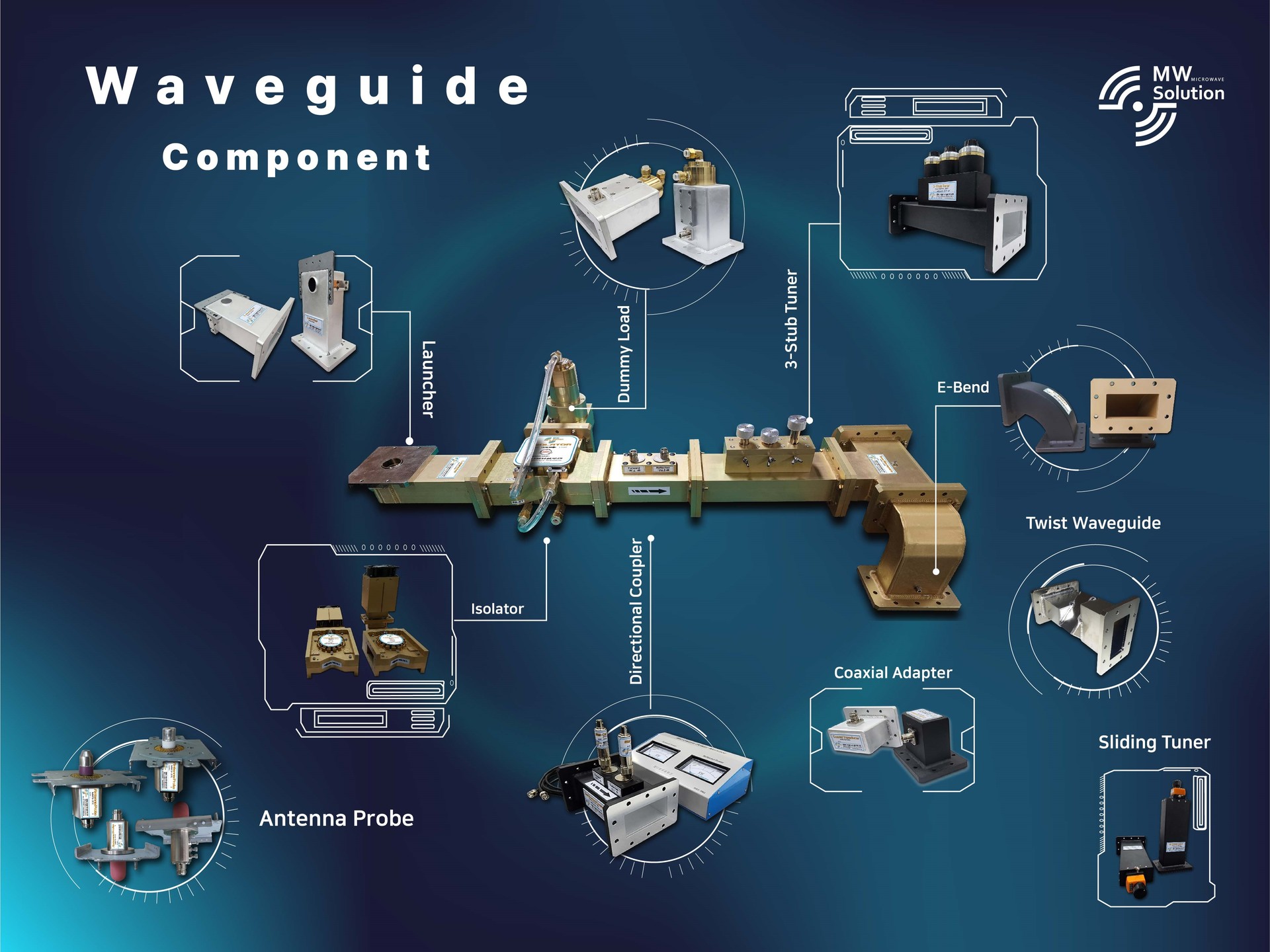

Waveguide Component

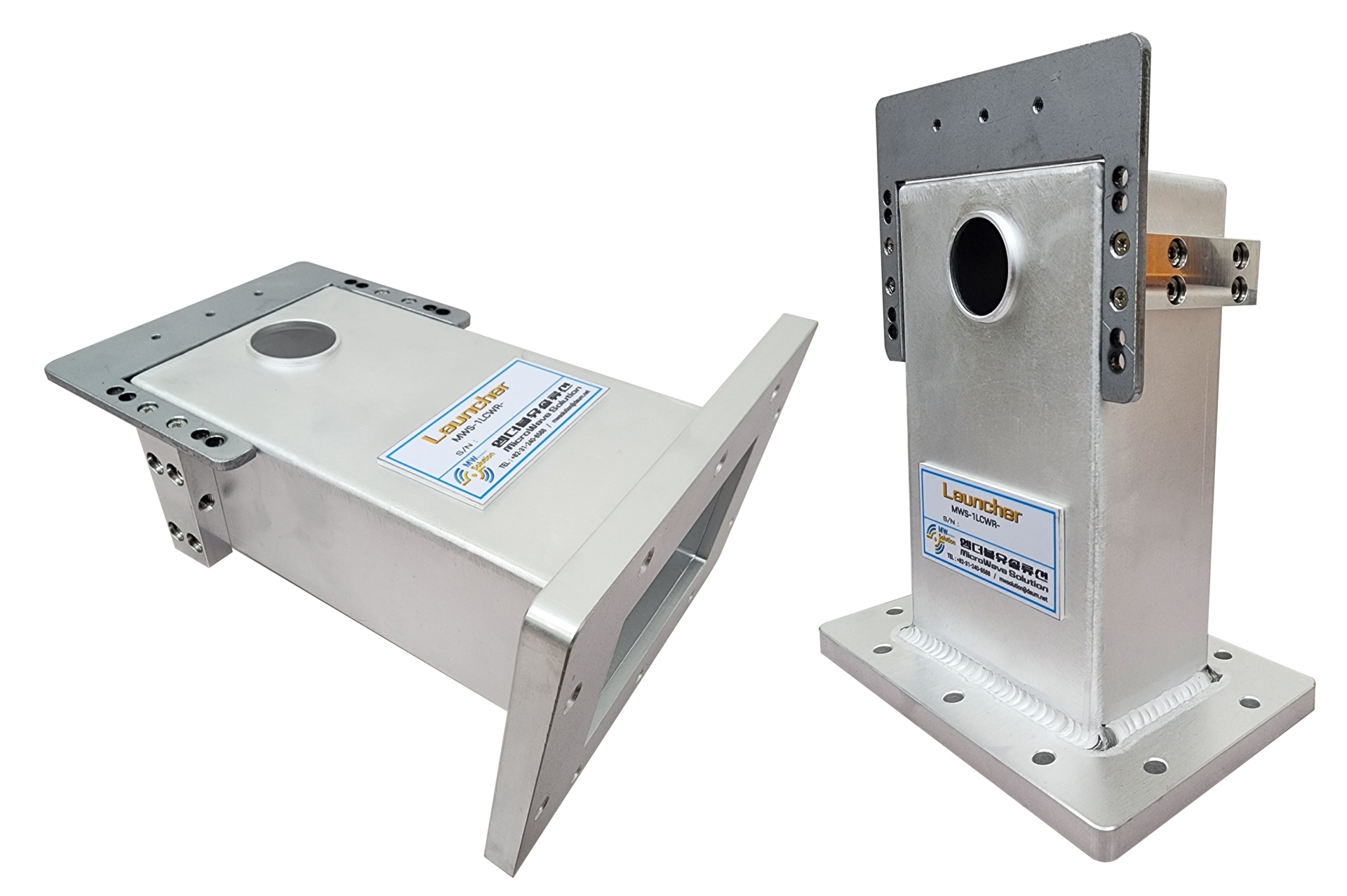

Launcher

Specification

  •  Model : MWS-1LCWR-430
  •  Waveguide Size : WR-430
  •  Frequency : 2450Mhz
  •  V.S.W.R : max 1.2
  •  Flange : BRJ-2
  •  Material : Aluminium
  • 제조사 : 엠더블유솔루션
더보기

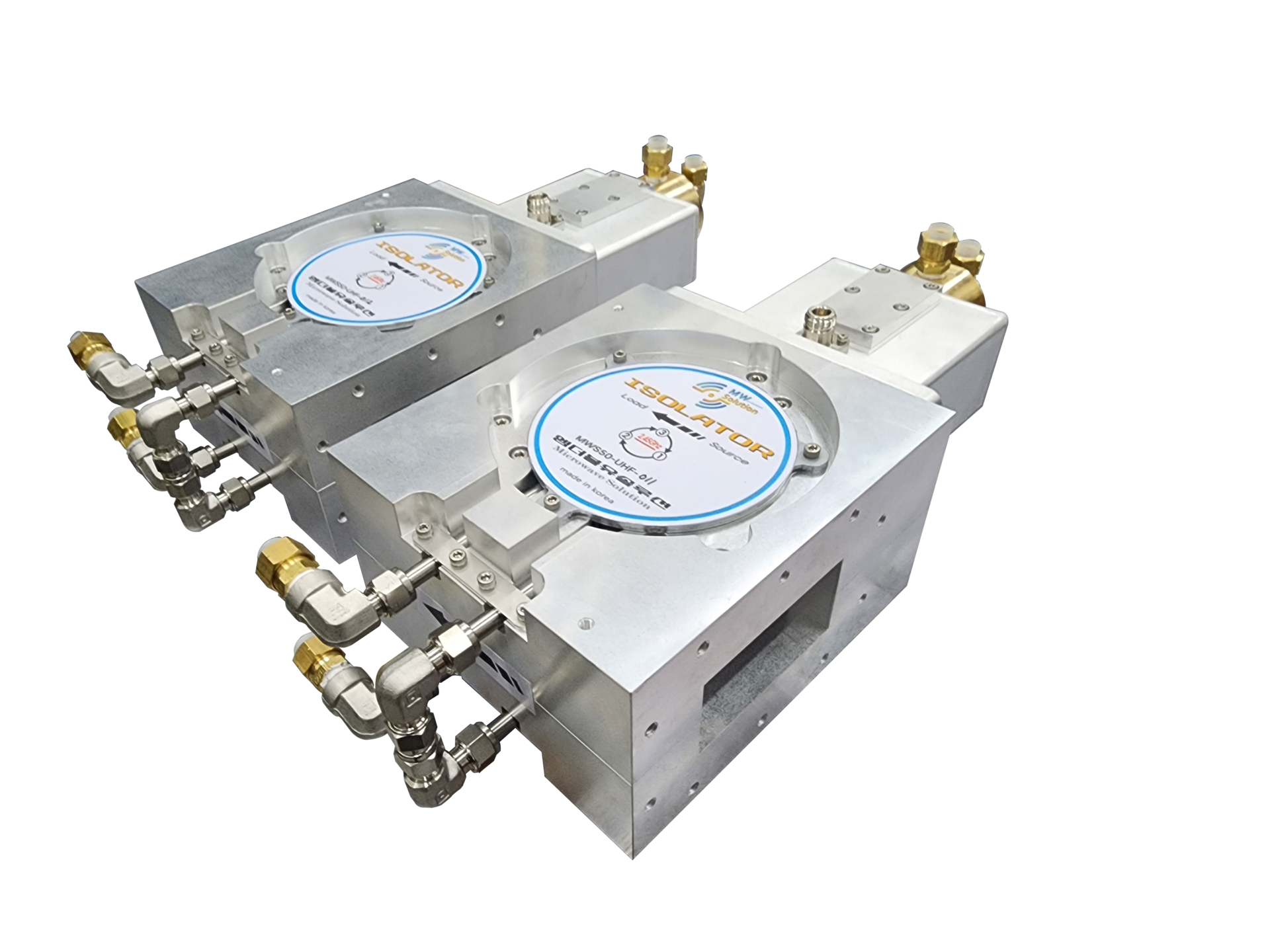

Isolator

Specification

  • Waveguide Size : WR-430
  • Frequency : 2450Mhz
  • V.S.W.R : max 1.2
  • Isolation : min 25dB
  • Coupling Factor : -60dB
  • Cooling Water : min 4ℓ/min
  • Flange Size: BRJ-2
  • Material : Aluminum
더보기

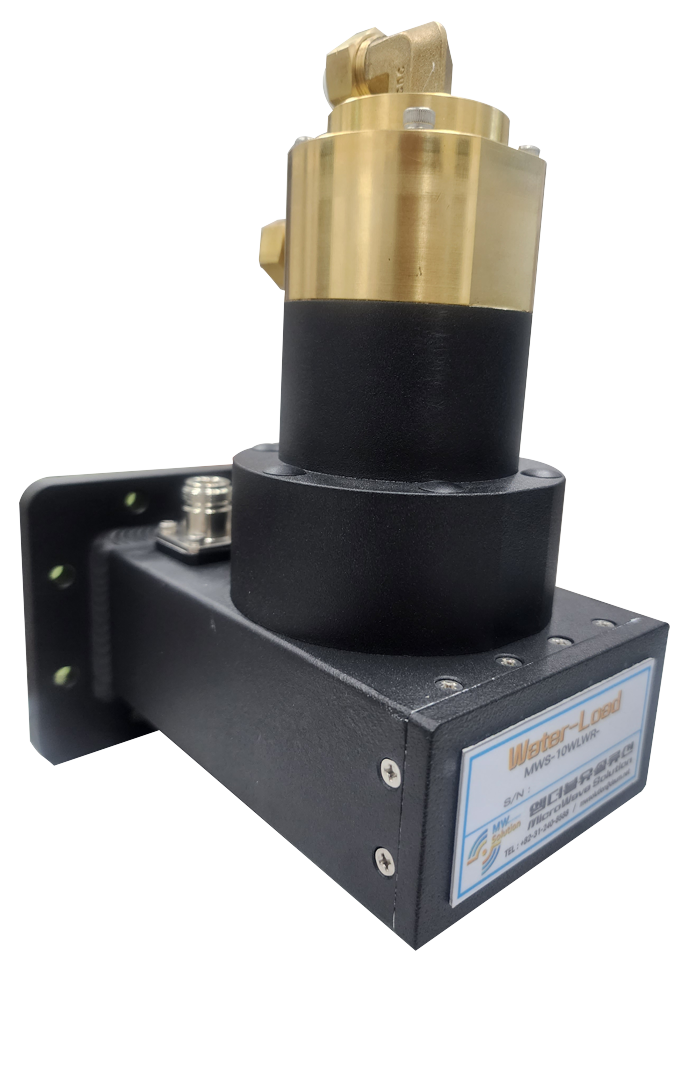

Dummy Load

    Specification

  • Model : MWS-10WLWR-340
  • Waveguide Size : WR-430
  • Flange Size: BRJ-2.6
  • Frequency : 2450Mhz±30Mhz
  • V.S.W.R : max 1.1
  • Power : max.3000W
  • Material : aluminium
  • Cooling : 공냉식
  • 제조사 : 엠더블유솔루션
더보기

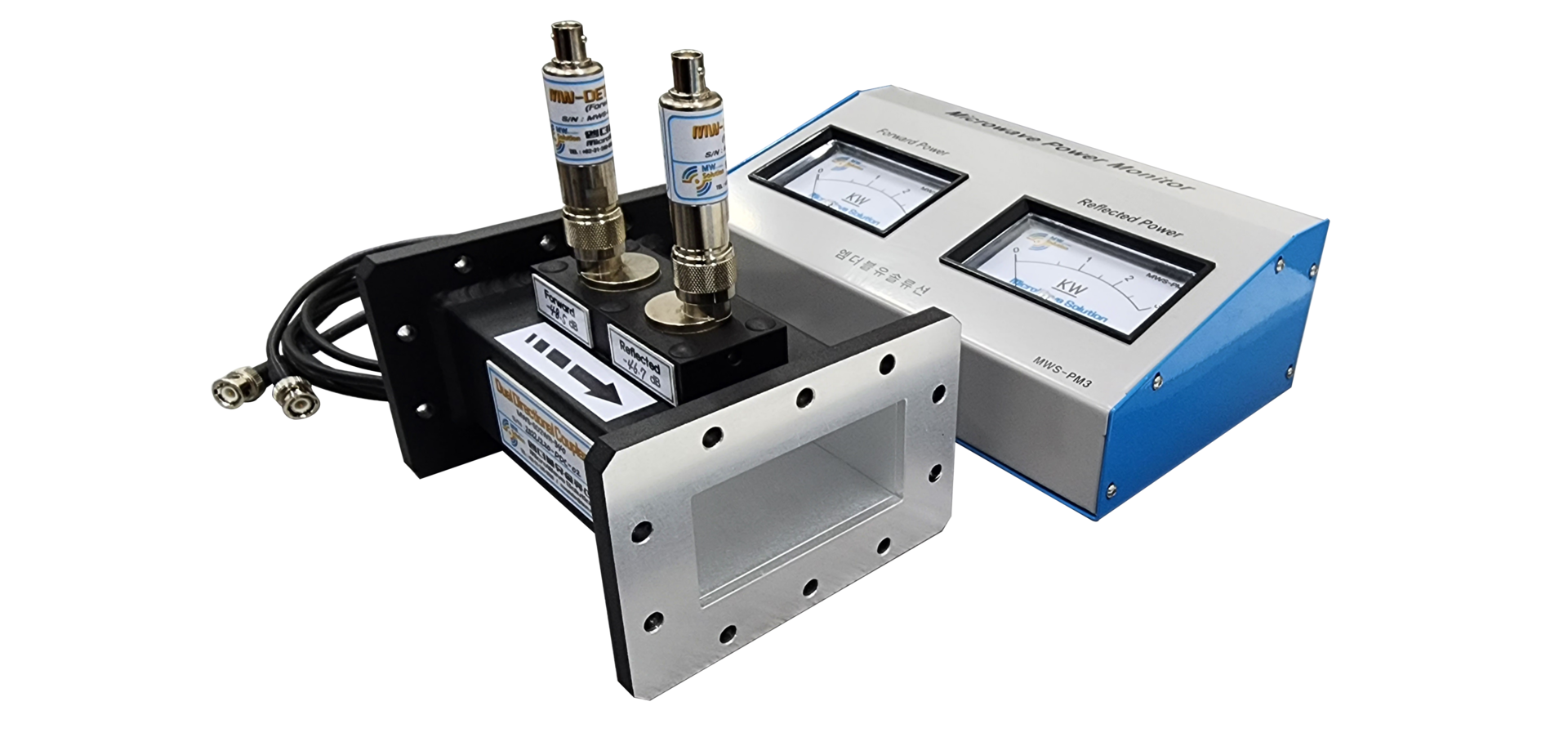

Directional Coupler

    Specification

  • Waveguide Size : WR-340
  • Frequency : 2450Mhz
  • Directivity : min. 25dB
  • Display : max. 3kw
  • Flange : BRJ-2.6
  • Material : Aluminium
  • 구성

      - Dual Directional Coupler – 1ea

      - Power Monitor -1ea

      - MW Detector – 2ea

      - BNC케이블 -2EA

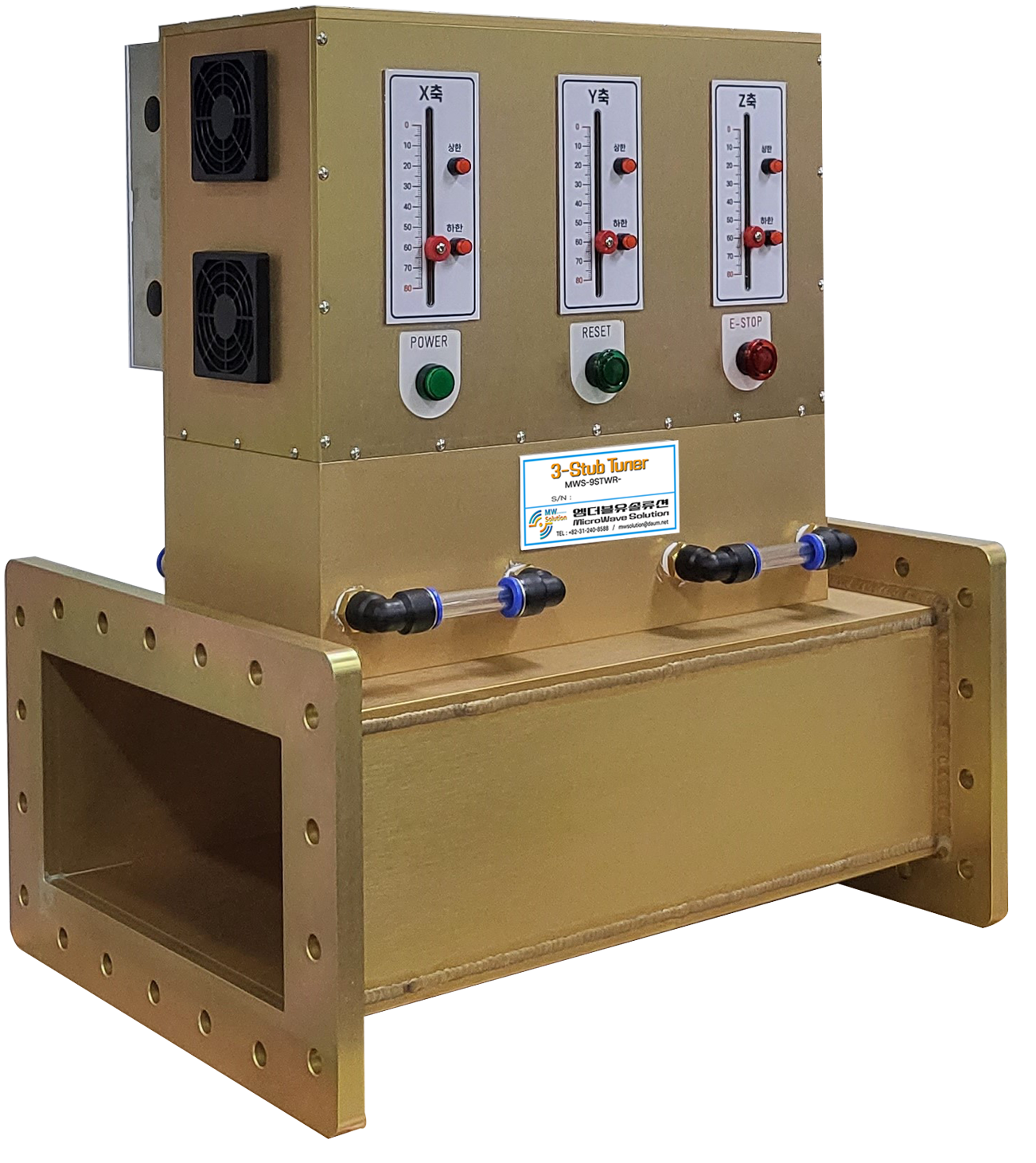

3-Stub Tuner

  Specification

  • Waveguide Size : WR-340
  • Frequency : 2450Mhz
  • V.S.W.R : 1.1 ~20.0
  • Flange : BRJ-2.6
  • Material : Aluminium
더보기

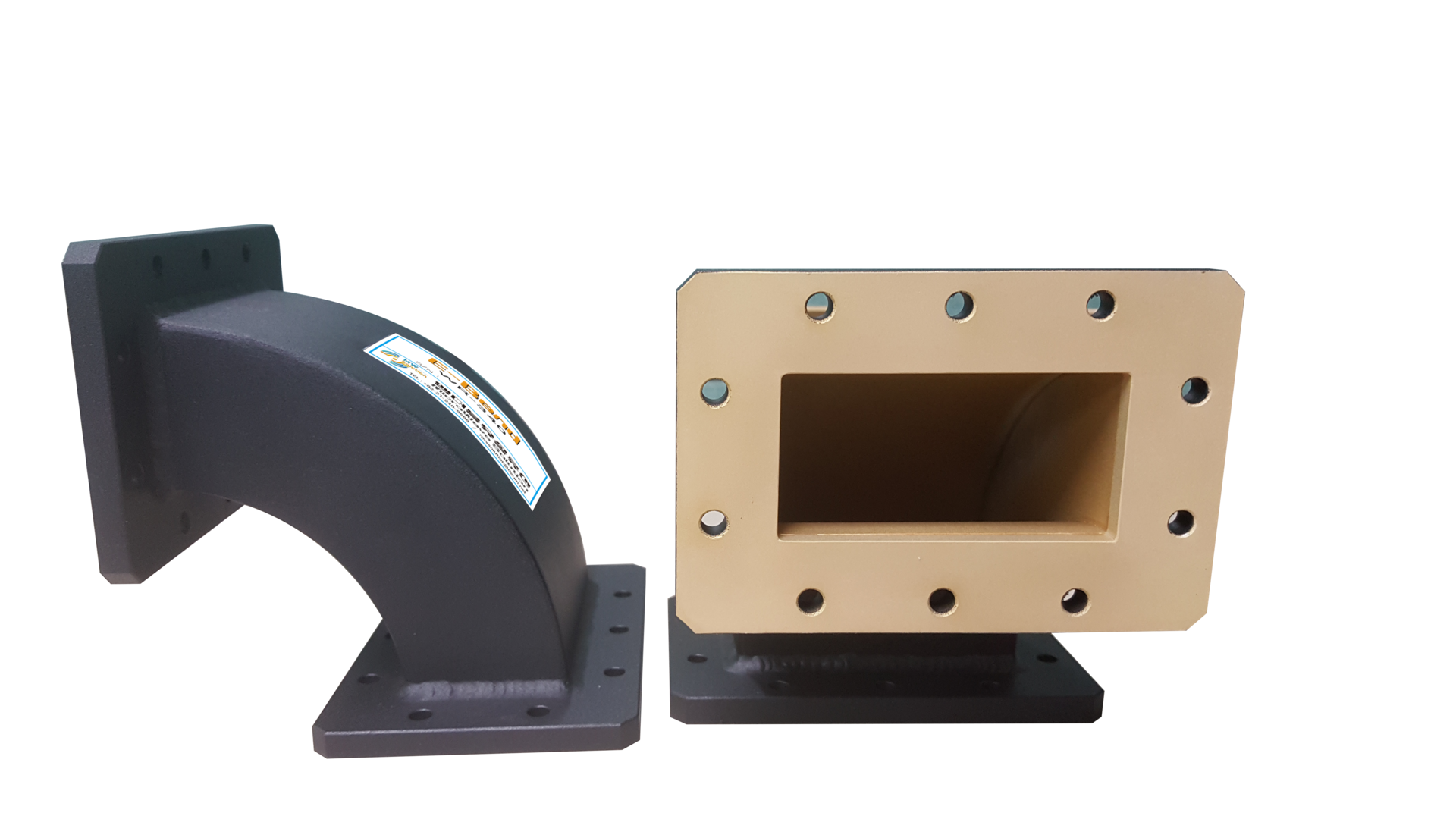

E-Bend

  Specification

  • Model : MWS-11EBWR-430
  • Waveguide Size : WR-430
  • Frequency : 2450Mhz
  • V.S.W.R : max 1.2
  • Flange : BRJ-2
  • Material : Aluminium
  • 제조사 : 엠더블유솔루션

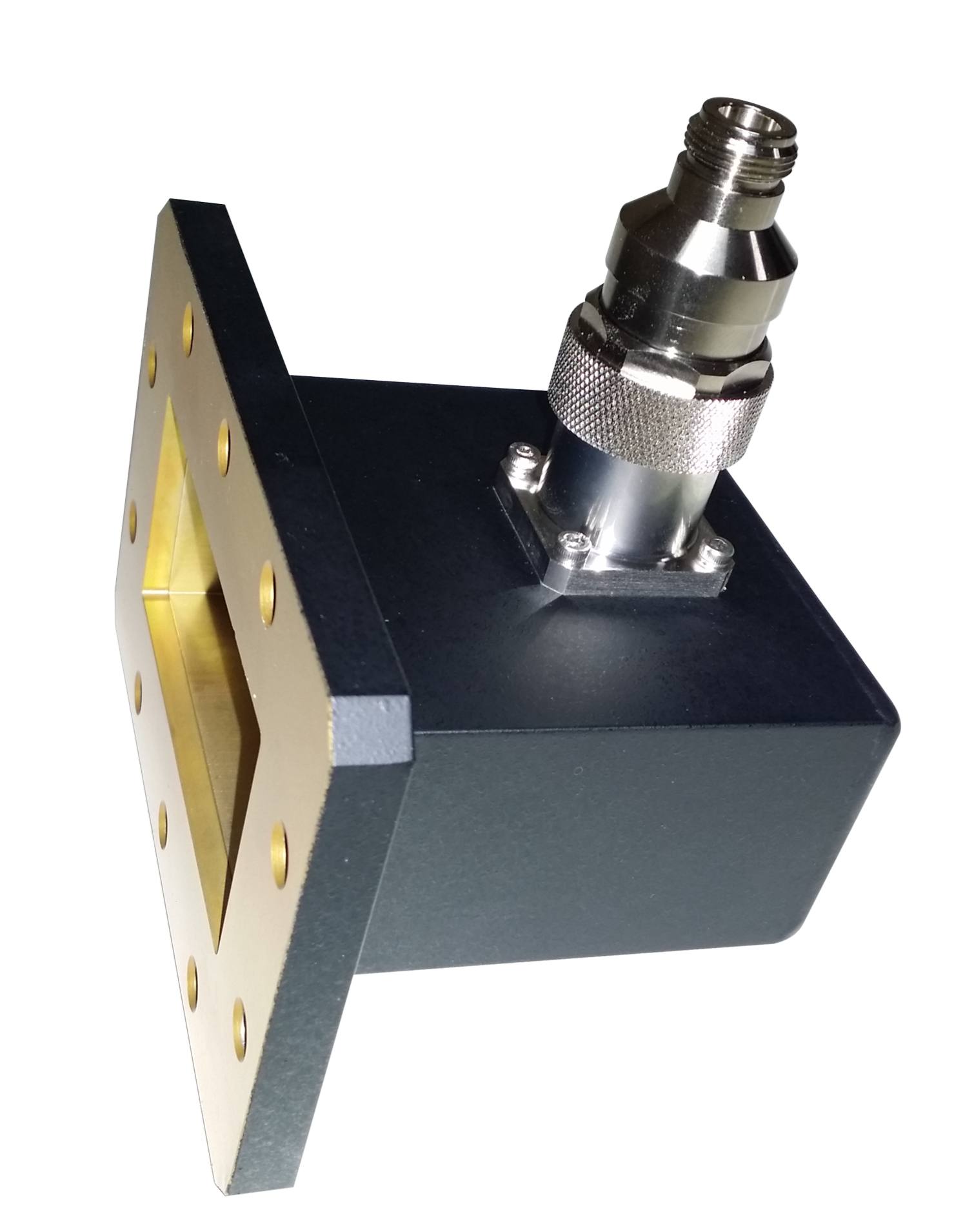

Coaxial Adapter

  Specification

  • Waveguide Size : WR-340
  • Frequency : 2450Mhz
  • V.S.W.R : max 1.1
  • Connector Type : N-TYPE(f)
  • Flange : BRJ-2.6
  • Material : Aluminium
더보기

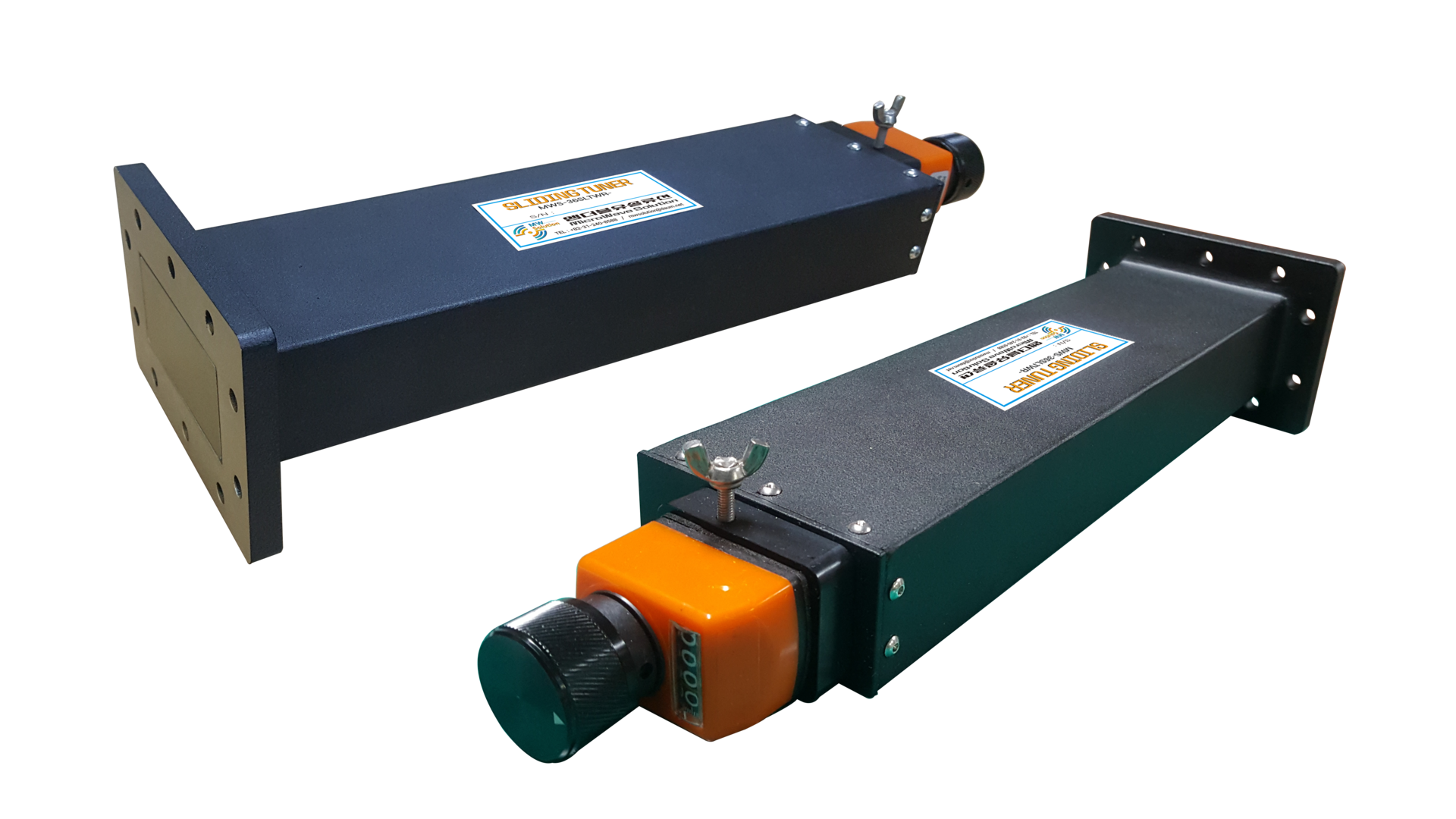

Sliding Tuner

  Specification

  • Waveguide Size : WR-340
  • Flange Size : BRJ-2.6
  • Frequency : 2450Mhz
  • Phase : 0.5λg가변
  • 이동거리 : 100mm
  • Material : aluminium

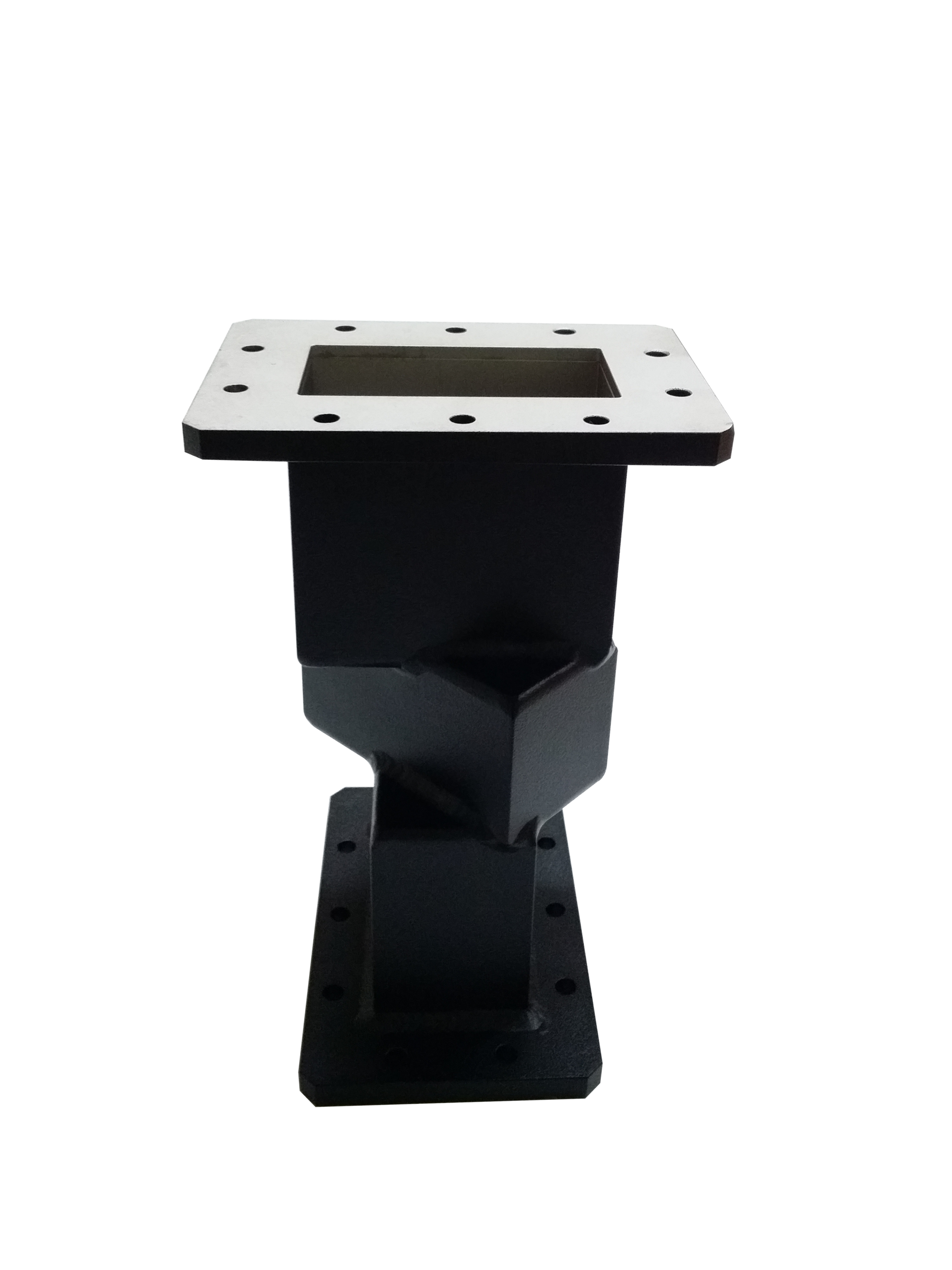

Twist Waveguide

  Specification

  • Waveguide Size : WR-340
  • Frequency : 2450Mhz±30Mhz
  • Flange Size: BRJ-2.6
  • V.S.W.R : max. 1.2
  • Material : Aluminium

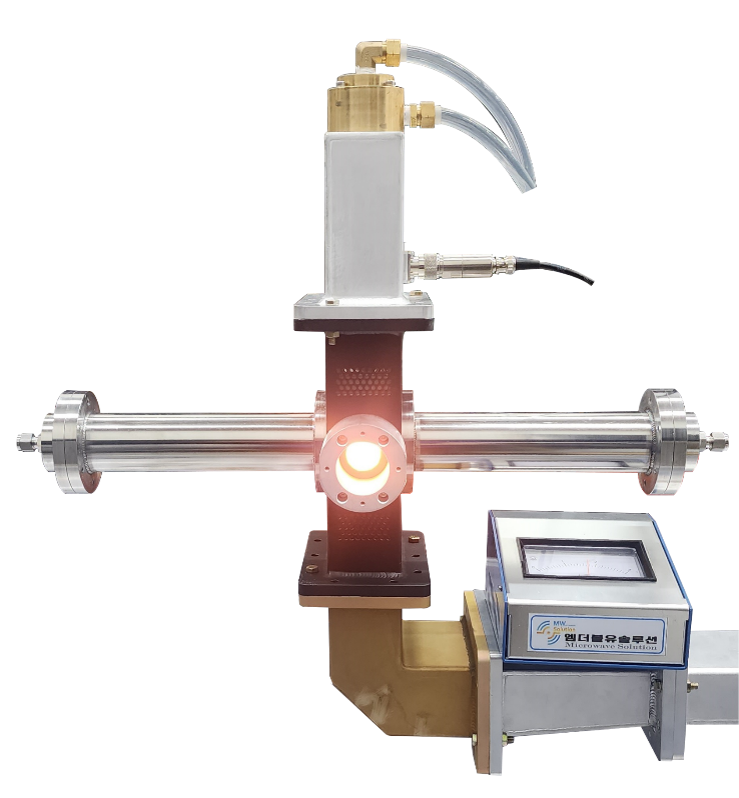

Waveguide Reactor

2450Mhz, 도파관 (WR-430, WR-340, WR-284) 형태의 단일 모드용 각종 도파관 반응기를  주문 제작 합니다.
